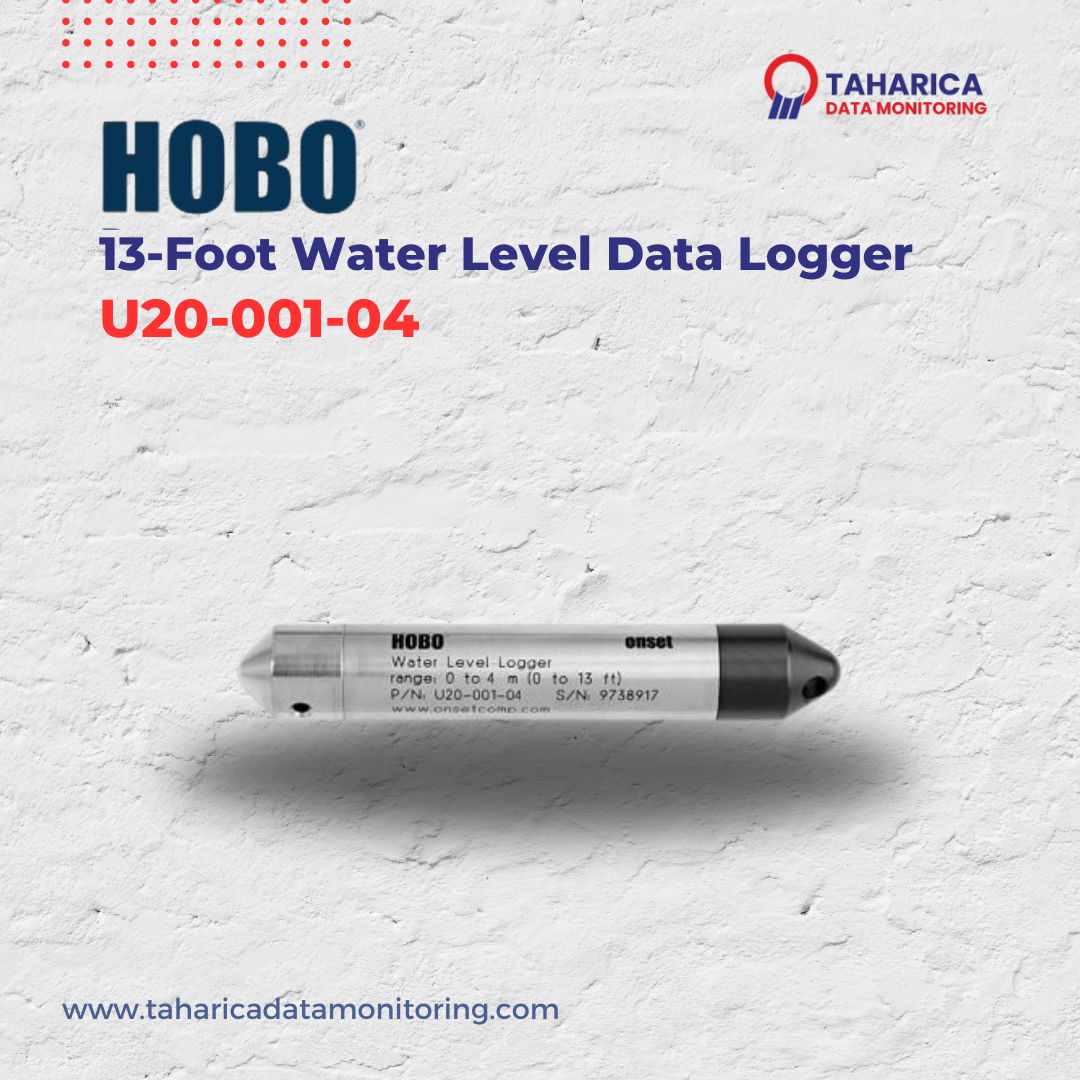

Alat Perekam Data Level Air Tawar HOBO 13-Foot Fresh Water Level Data Logger U20-001-04

Tekanan Mutlak, Tekanan Barometrik, Suhu dan Ketinggian Air

Pantau ketinggian air dan suhu di sumur, sungai, danau, dan lahan basah (air tawar) dengan Pencatat Data Ketinggian Air HOBO setinggi 13 kaki ini. Dengan jangkauannya yang sempit, logger ini memberikan akurasi terbaik di perairan dangkal. Logger ini menawarkan nilai yang besar dan penyebaran yang mudah karena tidak ada tabung ventilasi atau pengering yang rumit untuk dirawat. Untuk penyebaran air asin, seperti lahan basah payau dan daerah pasang surut

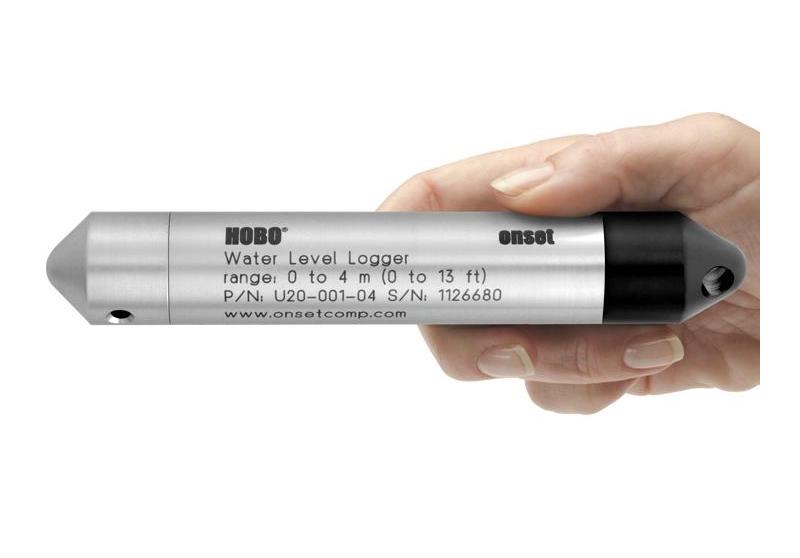

HOBO Water level data logger U20-001-04 Memantau ketinggian air dan suhu di sumur, sungai, danau, dan lahan basah (air tawar) dengan Pencatat Data Ketinggian Air HOBO setinggi 4 meter (13 kaki) ini. Dengan jangkauannya yang sempit, logger ini memberikan akurasi terbaik di perairan dangkal. Logger ini menawarkan nilai yang besar dan penyebaran yang mudah karena tidak ada tabung ventilasi atau pengering yang rumit untuk dirawat. Untuk penyebaran air asin, seperti lahan basah payau dan daerah pasang surut

Fitur

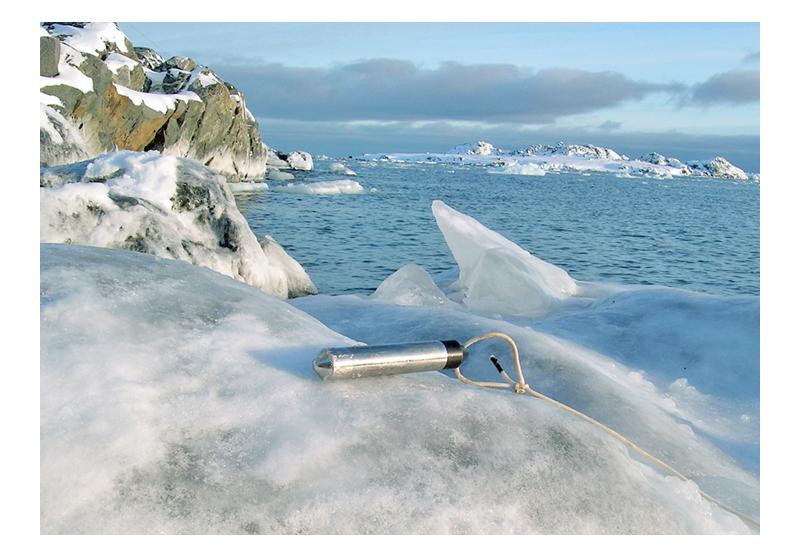

Proteksi petir – tidak ada kabel sinyal panjang, dan elektronik terlindung dalam rumah baja tahan karat untuk digunakan di air tawar (lihat gambar lokasi sensor logger Level Air)
Perangkat lunak HOBOware Pro menyediakan konversi yang mudah ke pembacaan ketinggian air yang akurat, kompensasi penuh untuk suhu tekanan barometrik (lihat demo), dan kerapatan air.
Pengambilan sampel dengan kecepatan ganda (lihat demo) memungkinkan pengambilan sampel yang lebih cepat pada saat-saat kritis seperti saat pemompaan mulai atau berhenti.
Tersedia dalam 4 rentang kedalaman
Ideal untuk digunakan di sumur, sungai, danau, lahan basah dan daerah pasang surut
Water level data logger ini memiliki desain tabung tanpa ventilasi untuk penerapan yang mudah dan andal
Tersedia dalam versi stainless dan titanium
Sensor tekanan keramik tahan lama
Sertifikat kalibrasi yang dapat dilacak NIST 3 titik disertakan

Spesifikasi

Pressure and Water Level Measurements U20-001-04 and U20-001-04-Ti
Operation Range	0 to 145 kPa (0 to 21 psia); approximately 0 to 4 m (0 to 13 ft) of water depth at sea level, or 0 to 7 m (0 to 23 ft) of water at 3,000 m (10,000 ft) of altitude
Factory Calibrated Range	69 to 145 kPa (10 to 21 psia), 0° to 40°C (32° to 104°F)
Burst Pressure	310 kPa (45 psia) or 18 m (60 ft) depth
Water Level Accuracy*	Typical error: ±0.075% FS, 0.3 cm (0.01 ft) water Maximum error: ±0.15% FS, 0.6 cm (0.02 ft) water
Raw Pressure Accuracy**	±0.3% FS, 0.43 kPa (0.063 psi) maximum error
Resolution	<0.014 kPa (0.002 psi), 0.14 cm (0.005 ft) water
Pressure Response Time (90%)***	<1 second; measurement accuracy also depends on temperature response time
Temperature Measurements (All Models)
Operation Range	-20° to 50°C (-4° to 122°F)
Accuracy	±0.44°C from 0° to 50°C (±0.79°F from 32° to 122°F), see Plot A in manual
Resolution	0.10°C at 25°C (0.18°F at 77°F), see Plot A in manual
Response Time (90%)	5 minutes in water (typical)
Stability (Drift)	0.1°C (0.18°F) per year
Logger
Real-time Clock	± 1 minute per month 0° to 50°C (32° to 122°F)
Battery	2/3 AA, 3.6 Volt lithium, factory-replaceable
Battery Life (Typical Use)	5 years with 1 minute or greater logging interval
Memory (Non-volatile)	64K bytes memory (approx. 21,700 pressure and temperature samples)
Weight	Stainless steel models: approximately 210 g (7.4 oz) Titanium models: approximately 140 g (4.8 oz)
Dimensions	2.46 cm (0.97 inches) diameter, 15 cm (5.9 inches) length; mounting hole 6.3 mm (0.25 inches) diameter
Wetted Materials	316 stainless steel, Viton® o-rings, acetyl cap, ceramic sensor
Logging Interval	Fixed-rate or multiple logging intervals, with up to 8 user-defined logging intervals and durations; logging intervals from 1 second to 18 hours. Refer to the HOBOware software manual.
Launch Modes	Immediate start and delayed start
Offload Modes	Offload while logging; stop and offload
Battery Indication	Battery voltage can be viewed in status screen and optionally logged in datafile. Low battery indication in datafile.
Environmental Rating	IP68
	The CE Marking identifies this product as complying with all relevant directives in the European Union (EU).

Kategori: Aquatic Ecology, Climate Monitoring, Dam Management, Dam Management, Ecology, Ecology, Hydrology and Groundwater Monitoring, Precision Livestock Monitoring, Underwater, USB, Water Level Data Logger, Watershed Management, Watershed Management, Wetland and Stormwater Tag: hobowl

Deskripsi
Ulasan (0)

Deskripsi

Pressure and Water Level Measurements U20-001-04 and U20-001-04-Ti
Operation Range	0 to 145 kPa (0 to 21 psia); approximately 0 to 4 m (0 to 13 ft) of water depth at sea level, or 0 to 7 m (0 to 23 ft) of water at 3,000 m (10,000 ft) of altitude
Factory Calibrated Range	69 to 145 kPa (10 to 21 psia), 0° to 40°C (32° to 104°F)
Burst Pressure	310 kPa (45 psia) or 18 m (60 ft) depth
Water Level Accuracy*	Typical error: ±0.075% FS, 0.3 cm (0.01 ft) water Maximum error: ±0.15% FS, 0.6 cm (0.02 ft) water
Raw Pressure Accuracy**	±0.3% FS, 0.43 kPa (0.063 psi) maximum error
Resolution	<0.014 kPa (0.002 psi), 0.14 cm (0.005 ft) water
Pressure Response Time (90%)***	<1 second; measurement accuracy also depends on temperature response time
Temperature Measurements (All Models)
Operation Range	-20° to 50°C (-4° to 122°F)
Accuracy	±0.44°C from 0° to 50°C (±0.79°F from 32° to 122°F), see Plot A in manual
Resolution	0.10°C at 25°C (0.18°F at 77°F), see Plot A in manual
Response Time (90%)	5 minutes in water (typical)
Stability (Drift)	0.1°C (0.18°F) per year
Logger
Real-time Clock	± 1 minute per month 0° to 50°C (32° to 122°F)
Battery	2/3 AA, 3.6 Volt lithium, factory-replaceable
Battery Life (Typical Use)	5 years with 1 minute or greater logging interval
Memory (Non-volatile)	64K bytes memory (approx. 21,700 pressure and temperature samples)
Weight	Stainless steel models: approximately 210 g (7.4 oz) Titanium models: approximately 140 g (4.8 oz)
Dimensions	2.46 cm (0.97 inches) diameter, 15 cm (5.9 inches) length; mounting hole 6.3 mm (0.25 inches) diameter
Wetted Materials	316 stainless steel, Viton® o-rings, acetyl cap, ceramic sensor
Logging Interval	Fixed-rate or multiple logging intervals, with up to 8 user-defined logging intervals and durations; logging intervals from 1 second to 18 hours. Refer to the HOBOware software manual.
Launch Modes	Immediate start and delayed start
Offload Modes	Offload while logging; stop and offload
Battery Indication	Battery voltage can be viewed in status screen and optionally logged in datafile. Low battery indication in datafile.
Environmental Rating	IP68
	The CE Marking identifies this product as complying with all relevant directives in the European Union (EU).
