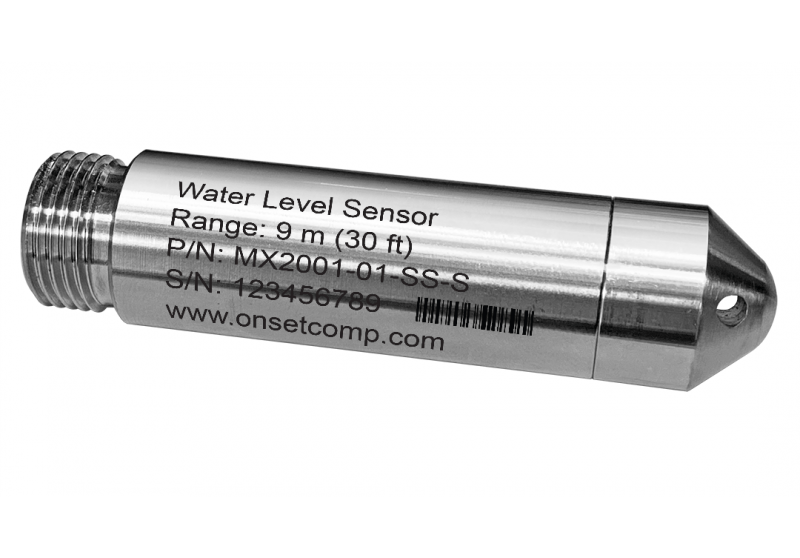

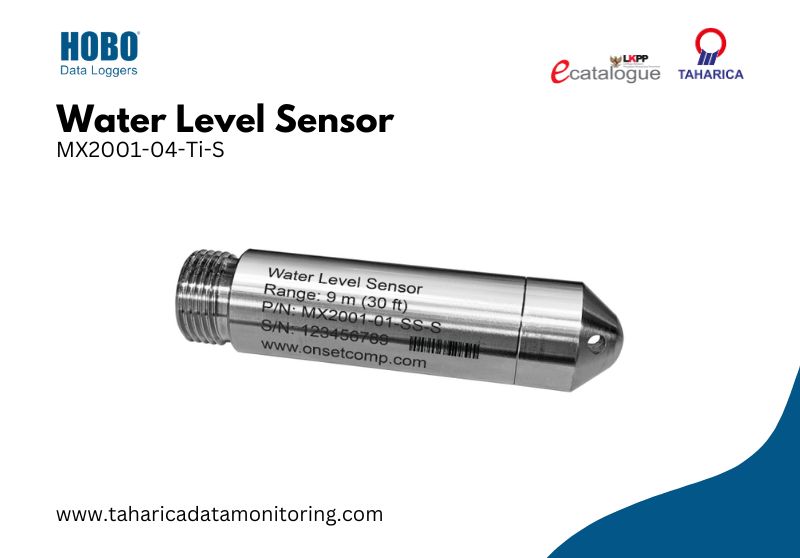

Water Level Sensor MX2001-04-Ti-S

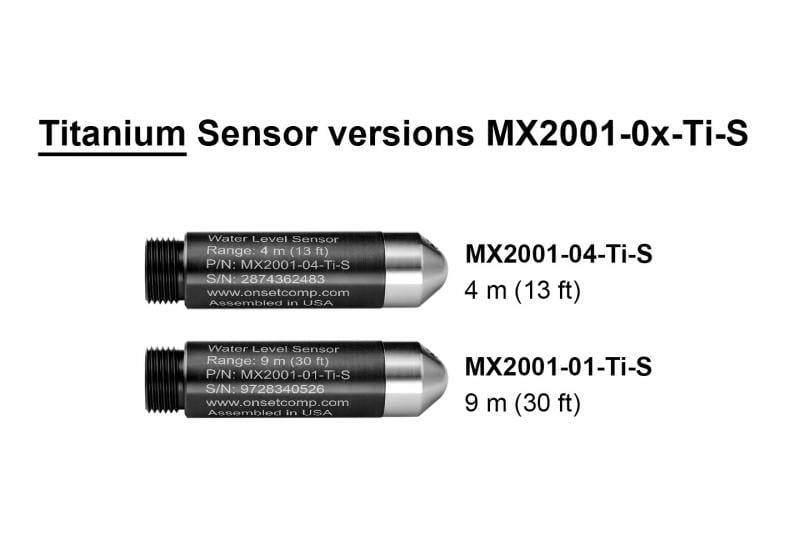

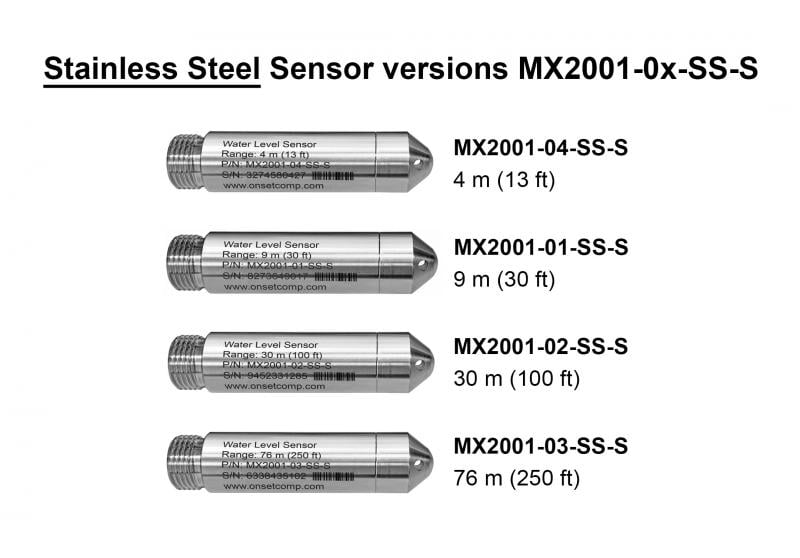

Sensor Level Air MX2001-S digunakan dengan HOBO Bluetooth Low Energy Water Level Data Logger (MX2001), HOBO MicroRX Water Level Stations (RX2103 dan RX2104), dan HOBO RX3000 Remote Monitoring Station untuk tekanan air yang akurat, suhu, dan pengukuran ketinggian air. Sensor ini tersedia dalam empat rentang kedalaman, serta dalam baja tahan karat atau titanium (disarankan untuk digunakan di air asin).
Deskripsi
SpesifikasiÂ
| Pressure (Absolute) and Water Level Measurements MX2001-01-SS-S and MX2001-01-Ti-S | |
| Operation Range | 0 to 207 kPa (0 to 30 psia); approximately 0 to 9 m (0 to 30 ft) of water depth at sea level, or 0 to 12 m (0 to 40 ft) of water at 3,000 m (10,000 ft) of altitude |
| Factory Calibrated Range | 69 to 207 kPa (10 to 30 psia), 0 to 40C (32 to 104F) |
| Burst Pressure | 310 kPa (45 psia) or 18 m (60 ft) depth |
| Water Level Accuracy* | Typical error: 0.05% FS, 0.5 cm (0.015 ft) water Maximum error: 0.1% FS, 1.0 cm (0.03 ft) water |
| Raw Pressure Accuracy** | 0.3% FS, 0.62 kPa (0.09 psi) maximum error |
| Resolution | <0.02 kPa (0.003 psi), 0.21 cm (0.007 ft) water |
| Pressure Response Time (90%)*** | <1 second at a stable temperature |
| Dimensions | 2.54 cm (1.0 inches) diameter, 9.91 cm (3.9 inches) length |
| Weight | Stainless sensor (MX2001-0x-SS-S): Approximately 141.4Â g (4.99Â oz) in air; approximately 53.9 g (1.9 oz) in fresh water Titanium sensor (MX2001-0x-Ti-S): Approximately 80 g (2.83 oz) in air; approximately 37 g (1.3 oz) in fresh water |
| Wetted Materials | Stainless sensor (MX2001-0x-SS-S): Stainless steel housing; Viton and Buna-N O-rings; ceramic sensor in stainless steel end cap Titanium sensor (MX2001-0x-Ti-S): Acetal housing, PVC end cap; Viton and Buna-N O-rings; ceramic sensor in Titanium end cap Cable: Polycarbonate top end connector, PVC end cap (sensor connection), nylon collar nut(s), Viton O-rings, polyurethane jacket |
| Environmental Rating | IP68 |
| Pressure (Absolute) and Water Level Measurements MX2001-02-SS-S | |
| Operation Range | 0 to 400 kPa (0 to 58 psia); approximately 0 to 30.6 m (0 to 100 ft) of water depth at sea level, or 0 to 33.6 m (0 to 111 ft) of water at 3,000 m (10,000 ft) of altitude |
| Factory Calibrated Range | 69 to 400 kPa (10 to 58 psia), 0 to 40C (32 to 104F) |
| Burst Pressure | 500 kPa (72.5 psia) or 40.8 m (134 ft) depth |
| Water Level Accuracy* | Typical error: 0.05% FS, 1.5 cm (0.05 ft) water Maximum error: 0.1% FS, 3.0 cm (0.1 ft) water |
| Raw Pressure Accuracy** | 0.3% FS, 1.20 kPa (0.17 psi) maximum error |
| Resolution | <0.04 kPa (0.006 psi), 0.41 cm (0.013 ft) water |
| Pressure Response Time (90%)*** | <1 second at a stable temperature |
| Dimensions | Â 2.54 cm (1.0 inches) diameter, 9.91 cm (3.9 inches) length |
| Weight | Approximately 141.4Â g (4.99Â oz) in air; approximately 53.9 g (1.9 oz) in fresh water |
| Wetted Materials | Stainless steel housing; Viton and Buna-N O-rings; ceramic sensor in stainless steel end cap Cable: Polycarbonate top end connector, PVC end cap (sensor connection), nylon collar nut(s), Viton O-rings, polyurethane jacket |
| Environmental Rating | IP68 |
| Pressure (Absolute) and Water Level Measurements MX2001-03-SS-S | |
| Operation Range | 0 to 850 kPa (0 to 123.3 psia); approximately 0 to 76.5 m (0 to 251 ft) of water depth at sea level, or 0 to 79.5 m (0 to 262 ft) of water at 3,000 m (10,000 ft) of altitude |
| Factory Calibrated Range | 69 to 850 kPa (10 to 123.3 psia), 0 to 40C (32 to 104F) |
| Burst Pressure | 1,200 kPa (174 psia) or 112 m (368 ft) depth |
| Water Level Accuracy* | Typical error: 0.05% FS, 3.8 cm (0.125 ft) water Maximum error: 0.1% FS, 7.6 cm (0.25 ft) water |
| Raw Pressure Accuracy** | 0.3% FS, 2.55 kPa (0.37 psi) maximum error |
| Resolution | <0.085 kPa (0.012 psi), 0.87 cm (0.028 ft) water |
| Pressure Response Time (90%)*** | <1 second at a stable temperature |
| Dimensions | Â 2.54 cm (1.0 inches) diameter, 9.91 cm (3.9 inches) length |
| Weight | Approximately 141.4Â g (4.99Â oz) in air; approximately 53.9 g (1.9 oz) in fresh water |
| Wetted Materials | Stainless steel housing; Viton and Buna-N O-rings; ceramic sensor in stainless steel end cap Cable: Polycarbonate top end connector, PVC end cap (sensor connection), nylon collar nut(s), Viton O-rings, polyurethane jacket |
| Environmental Rating | IP68 |
| Pressure (Absolute) and Water Level Measurements MX2001-04-SS-S and MX2001-04-Ti-S | |
| Operation Range | 0 to 145 kPa (0 to 21 psia); approximately 0 to 4 m (0 to 13 ft) of water depth at sea level, or 0 to 7 m (0 to 23 ft) of water at 3,000 m (10,000 ft) of altitude |
| Factory Calibrated Range | 69 to 145 kPa (10 to 21 psia), 0 to 40C (32 to 104F) |
| Burst Pressure | 310 kPa (45 psia) or 18 m (60 ft) depth |
| Water Level Accuracy* | Typical error: 0.075% FS, 0.3 cm (0.01 ft) water Maximum error: 0.15% FS, 0.6 cm (0.02 ft) water |
| Raw Pressure Accuracy** | 0.3% FS, 0.43 kPa (0.063 psi) maximum error |
| Resolution | <0.014 kPa (0.002 psi), 0.14 cm (0.005 ft) water |
| Pressure Response Time (90%)*** | <1 second at a stable temperature |
| Dimensions | 2.54 cm (1.0 inches) diameter, 9.91 cm (3.9 inches) length |
| Weight | Stainless sensor (MX2001-0x-SS-S): Approximately 141.4 g (4.99 oz) in air; approximately 53.9 g (1.9 oz) in fresh water Titanium sensor (MX2001-0x-Ti-S): Approximately 80 g (2.83 oz) in air; approximately 37 g (1.3 oz) in fresh water |
| Wetted Materials | Stainless sensor (MX2001-0x-SS-S): Stainless steel housing; Viton and Buna-N O-rings; ceramic sensor in stainless steel end cap Titanium sensor (MX2001-0x-Ti-S): Acetal housing; Viton and Buna-N O-rings; ceramic sensor in Titanium end cap Cable: Polycarbonate top end connector, PVC end cap (sensor connection), nylon collar nut(s), Viton O-rings, polyurethane jacket |
| Environmental Rating | IP68 |
| Temperature (Water Level Sensors MX2001-0x-SS-S and MX2001-0x-Ti-S) | |
| Operation Range | -20 to 50C (-4 to 122F) |
| Accuracy | 0.44C from 0 to 50C (0.79F from 32 to 122F), see Plot A |
| Resolution | 0.1C at 25C (0.18F at 77F), see Plot A |
| Response Time (90%) | 5 minutes in water (typical) |
| Stability (Drift) | 0.1C (0.18F) per year |
| Dimensions | 2.54 cm (1.0 inches) diameter, 9.91 cm (3.9 inches) length |
| Weight | Stainless sensor (MX2001-0x-SS-S): Approximately 141.4Â g (4.99Â oz) in air; approximately 53.9 g (1.9 oz) in fresh water Titanium sensor (MX2001-0x-Ti-S): Approximately 80 g (2.83 oz) in air; approximately 37 g (1.3 oz) in fresh water |
| Wetted Materials | Stainless sensor (MX2001-0x-SS-S): Stainless steel housing; Viton and Buna-N O-rings; ceramic sensor in stainless steel end cap Titanium sensor (MX2001-0x-Ti-S): Acetal housing; Viton and Buna-N O-rings; ceramic sensor in Titanium end cap Cable: Polycarbonate top end connector, PVC end cap (sensor connection), nylon collar nut(s), Viton O-rings, polyurethane jacket |
| Environmental Rating | IP68 |
| MX2001 | RX2103/4 | RX3000 | |
|---|---|---|---|
| Communications | Bluetooth Low Energy | Cellular | Ethernet, WiFi, Cellular |
| Logger Dimensions | 2.54 cm (1.0 in.) diameter, 28.9 cm (11.4 in.) length |
19.95 x 13.68 x 7.49 cm (7.85 x 5.39 x 2.95 in.) |
18.6 x 18.1 x 11.8 cm (7.3 x 7.1 x 4.7 in.) |
| Smart Sensor Ports | – | 5 | 10 |
| Module Ports | None | 2 | |
| On-Board Barometric Sensor | Yes | With required Water Level Module (RXMOD-W1) | |
| Water Level Sensor (MX2001-xx-xx-S) |
Included | Purchased separately | |
| Data Plans | – | Cellular data plans available at additional cost | Included in price for WiFi and Ethernet stations; Additional cost for Cellular |
FiturÂ
- Desain tanpa ventilasi mengurangi perawatan
- Tahan lama, sensor keramik dapat menahan pembekuan
- Sertifikat kalibrasi yang dapat dilacak NIST 3 titik
