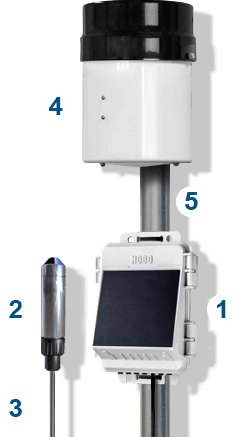

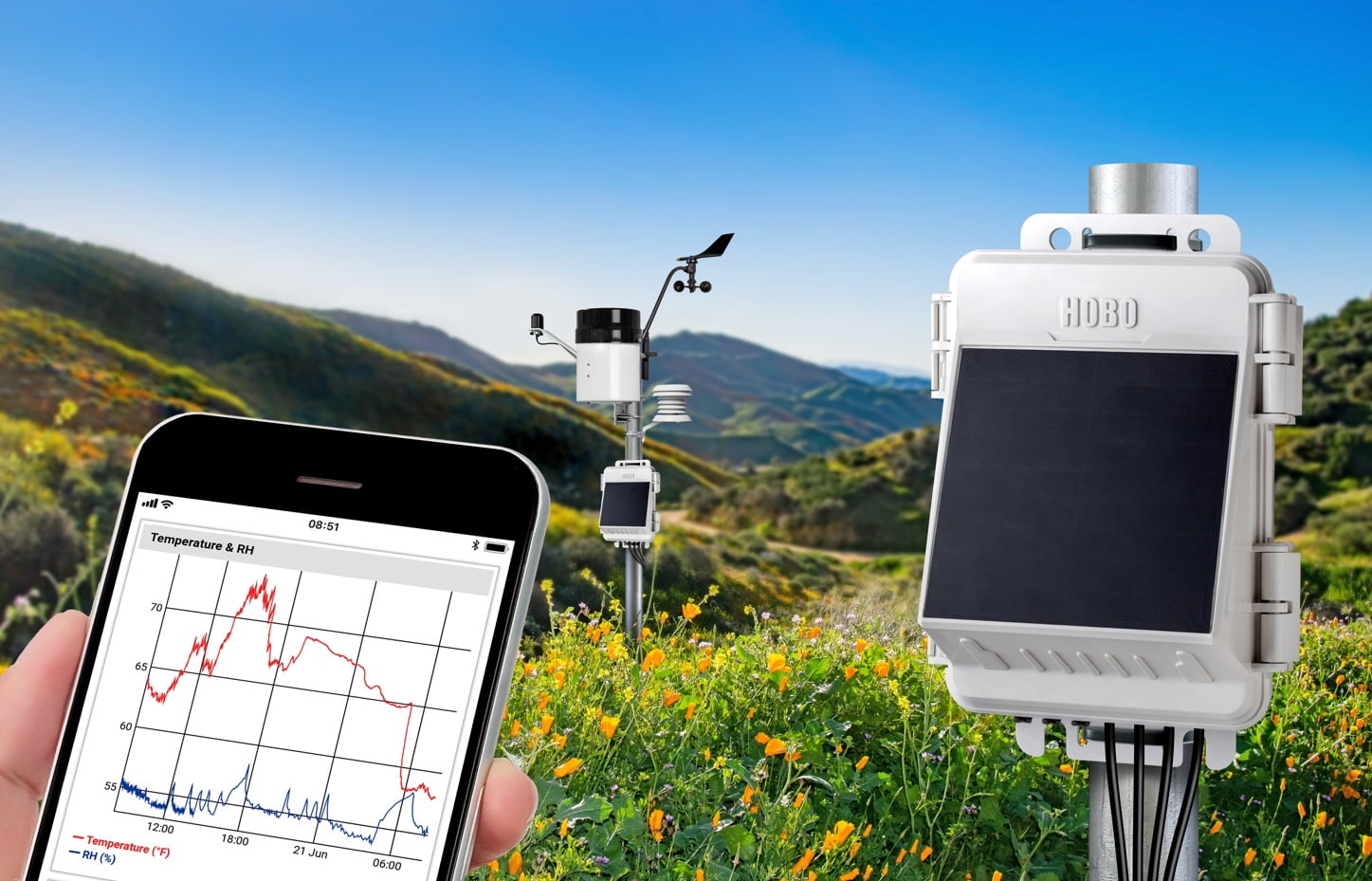

HOBO MicroRX Water Level Station RX2104 Kini Hadir Dengan Teknologi Canggih Online Monitoring 4G GSM

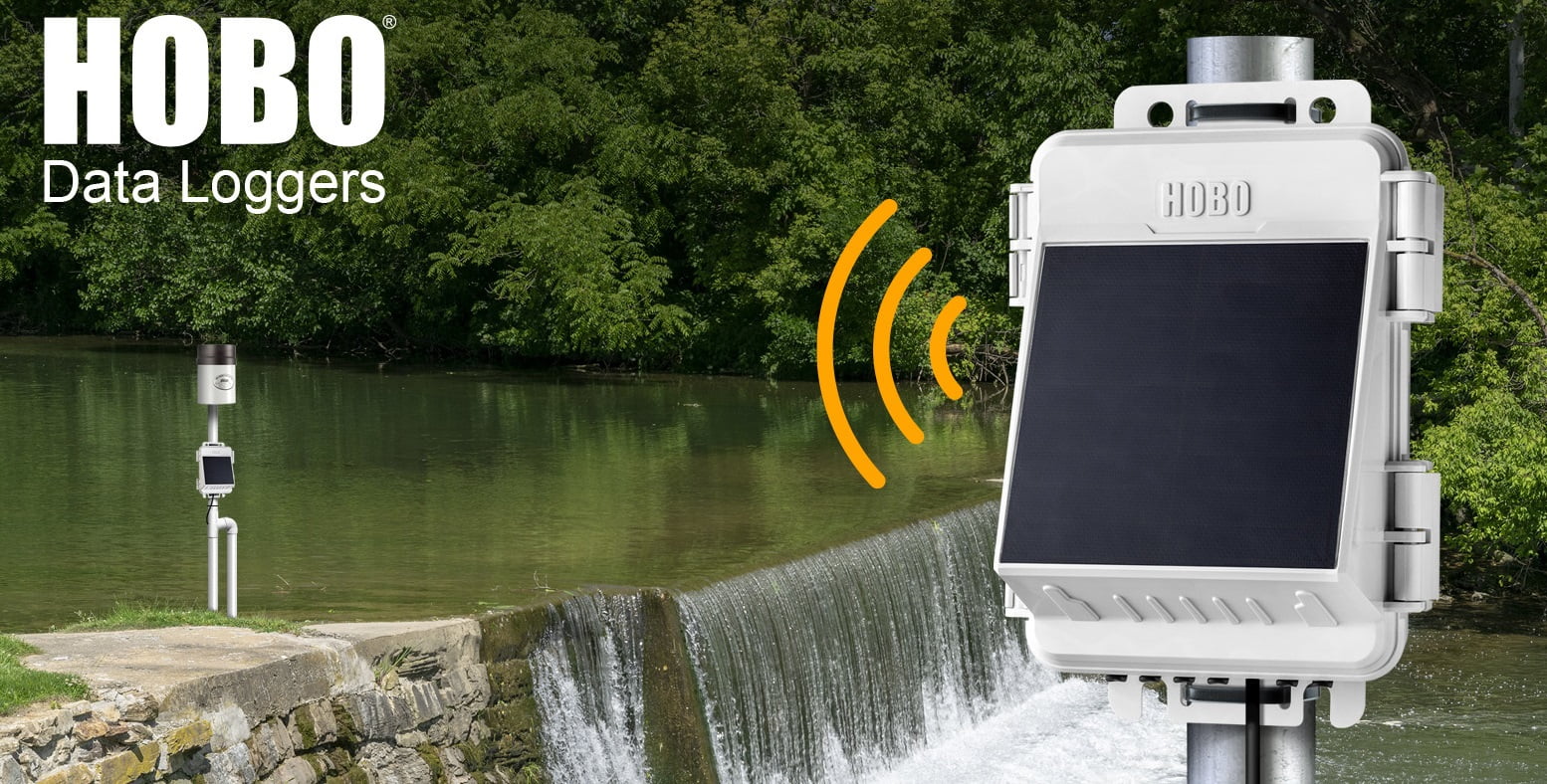

Dapatkan data ketinggian air dan suhu air dengan mudah secara real-time dengan menggunakan HOBO MicroRX RX2104, Dirancang untuk bertahan dalam kondisi cuaca yang buruk pada penempatan di lingkungan hutan, Danau, Bendungan, Sungai dan Pesisir Laut.

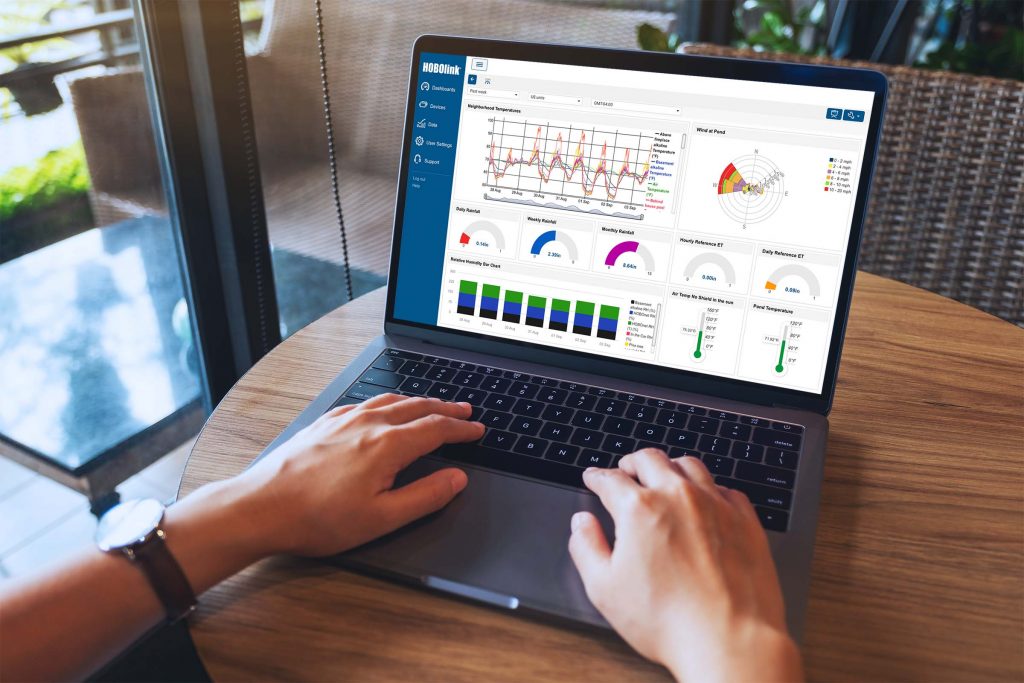

Fitur Utama HOBOlink
- Akses data Anda dengan browser web atau perangkat seluler
- Verifikasi status Stasiun HOBO dari jarak jauh
Siapkan dan kelola notifikasi alarm dari jarak jauh. - Jadwalkan pengiriman data otomatis ke email.
- Konfigurasikan tampilan dasbor interaktif
- Buat dasbor yang menyatukan data dari beberapa sistem dalam satu tampilan
Konfigurasi saluran terhitung seperti titik embun, akumulasi curah hujan, dan evapotranspirasi (ET). - Ekspor rentang tanggal dan sensor yang Anda inginkan.
- Hilangkan perhitungan manual yang rumit, data water level dan water flow akan otomatis terbaca.
- Fitur Alarm Peringatan yang bisa membantu mengetahui kondisi kritis.
- Waktu kunjungan ke lokasi site bisa di minimalkan dengan adanya teknologi online monitoring.
- Terapkan dalam kondisi yang sulit dengan stasiun yang tangguh dan ringkas
- Pantau beberapa parameter cuaca (kecepatan angin, arah angin, hujan, suhu udara dll) dengan fleksibilitas rangkaian sensor pintar Onset
HOBO MicroRX Water Level Station pemenang penghargaan adalah solusi pemantauan ketinggian air seluler yang diaktifkan web untuk aplikasi air hujan, air banjir, irigasi, hidrologi, dan lingkungan.Â
Aliran air baru dan perhitungan curah hujan yang terakumulasi, yang dilakukan langsung di stasiun pada saat pengukuran, memicu pemberitahuan segera tentang kondisi ketinggian air yang kritis.
Stasiun yang ringkas dan tahan lama, bersama dengan sensor ketinggian air yang tidak berventilasi, memungkinkan penerapan kondisi yang sulit dan pemantauan yang andal. Panel surya terintegrasi opsional atau daya baterai, dengan berbagai sensor pintar plug-and-play, mendukung pemantauan lingkungan yang fleksibel.
Operating Range | RX2103: -40° to 60°C (-40° to 140°F) |
Smart Sensor Connectors | 5 |
Smart Sensor Network Cable Length | 100 m (328 ft) maximum |
Smart Sensor Data Channels | Maximum of 15 (some smart sensors use more than one data channel; see sensor manual for details) |
Logging Rate | 1 minute to 18 hours |
Time Accuracy | ±8 seconds per month in 0° to 40°C (32°F to 104°F) range; |
Battery Type/Power Source | RX2103: 6 AA 1.5 V lithium batteries or AC power adapter (P-AC-1) |
Battery Life | RX2103 Battery Life: Battery life with daily connections:
Battery life with hourly connections and 1 minute logging:
Note: Deployments in areas with weak cellular strength could reduce battery life. RX2104 Battery Life: Typical 3–5 years when operated in the temperature range -20° to 40°C (-4° to 104°F); operation outside this range will reduce the battery service life. Maximum connection rates with built-in solar panel, in full sun:
Maximum connection rates with external 5W or 15W solar panels:
Battery life without solar recharging, with hourly connections and
|
Memory | 16 MB, 1Â million measurements, continuous logging |
Alarm Notification Latency | Logging interval plus 2–4 minutes, typical |

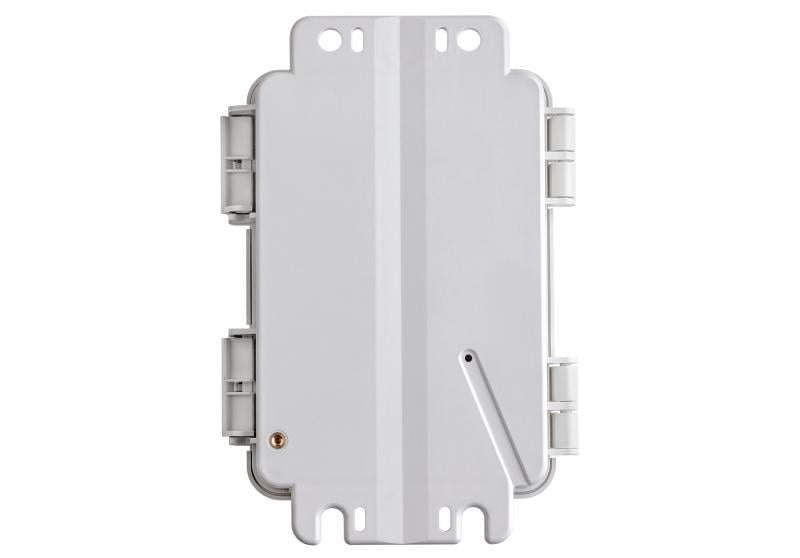

Enclosure Access | Hinged door secured by two latches with eyelets for use with user-supplied padlocks |
LCD | LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range |

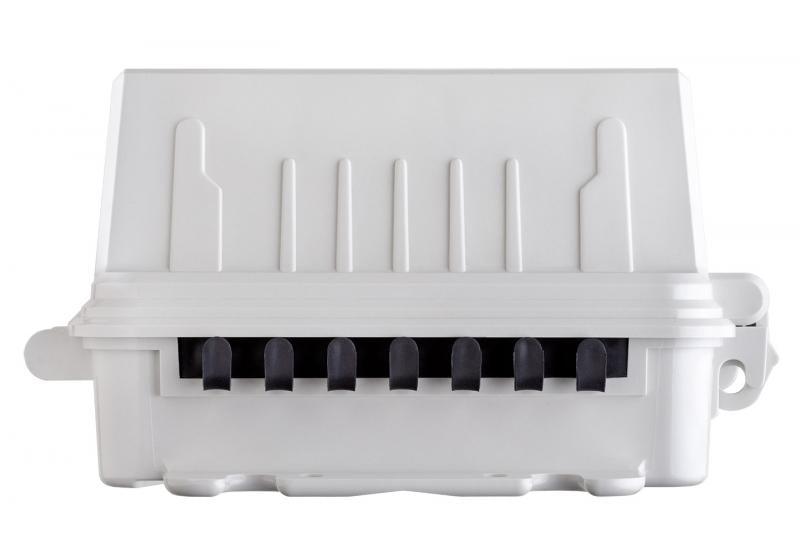

Materials | Outer enclosure: Polycarbonate/PBT blend with brass inserts; Interior: Polycarbonate/PBT; Gasket: Silicone foam; Cable channel: Santoprene™ TPE; U-Bolts (not included): Steel with zinc dichromate finish |
Dimensions | 19.95 x 13.68 x 7.49 cm (7.85 x 5.39 x 2.95 in.) |
Weight | 678 g (23.9 oz) |
Mounting | Optional U-bolts are compatible with masts up to 4.14 cm (1.63 in.) mast diameter; can also be mounted with zip ties or mounted to a flat surface with screws |
Environmental Rating | Weatherproof enclosure, NEMA 4X and IP66 (requires proper installation of cable channel system) |
| Wireless Radio | GSM/GPRS/EDGE: Quad band 850/900/1800/1900 MHz |
| Antenna | 4G LTE |
Pemantauan Ketinggian Air Untuk Berbagai Lingkungan
Pemantauan Air Akibat Terjadinya Hujan Deras
Pemantauan Mitigasi Terjadinya Banjir
Pemantauan Air Tanah
Studi Hidrologi
Mendukung persyaratan untuk izin industri, inspeksi di tempat, dan pemantauan lahan basah.
Menyediakan sistem peringatan untuk situasi banjir potensial dari peristiwa badai dan tingkat air yang tinggi.
Memantau tingkat dan kualitas air tanah di lubang bor, tangki, dan sumur untuk memahami dan mengamati potensi kondisi kekeringan atau kontaminasi.
Memantau sistem air permukaan dan akuifer untuk mendukung studi kualitas air dan lingkungan.
| MX2001 | RX2104 | RX3000 | |
|---|---|---|---|
| Communications | Bluetooth Low Energy | Cellular | Ethernet, WiFi, Cellular |
| Logger Dimensions | 2.54 cm (1.0 in.) diameter, 28.9 cm (11.4 in.) length | 19.95 x 13.68 x 7.49 cm (7.85 x 5.39 x 2.95 in.) | 18.6 x 18.1 x 11.8 cm (7.3 x 7.1 x 4.7 in.) |
| Smart Sensor Ports | – | 5 | 10 |
| Module Ports | None | 2 | |
| On-Board Barometric Sensor | Yes | With required Water Level Module (RXMOD-W1) | |
| Water Level Sensor (MX2001-xx-xx-S) | Included | Purchased separately | |
| Data Plans | – | Annual HOBOLink data plan required | Annual HOBOLink data plan required |
Di lingkungan apa pencatat data ini beroperasi?
Data logger ini beroperasi di lingkungan air.
Pengukuran apa yang didukung oleh pencatat data ini?
Data logger RX2100-WL mendukung pengukuran berikut: Tekanan Absolut, Tekanan Barometrik, Evapotranspirasi, Kebasahan Daun, Intensitas Cahaya, PAR, Curah Hujan, Kelembaban Relatif, Pemantauan Level Air Jarak Jauh, Kelembaban Tanah, Suhu, Aliran Air, Ketinggian Air dan Angin
- Station-side alarms for water flow and accumulated rainfall triggered at time of measurement

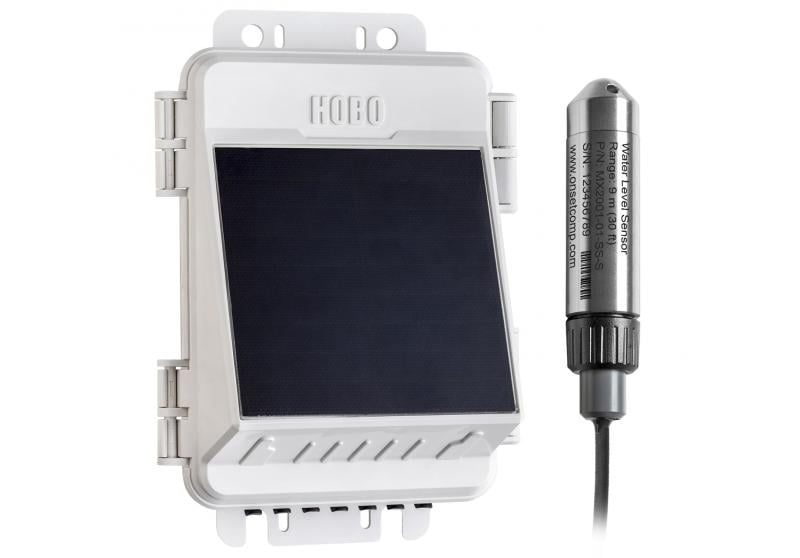

- Non-vented ceramic water level sensor with a choice of four ranges
- Integrated barometric pressure sensor
- Compact IP66/NEMA 4X enclosure

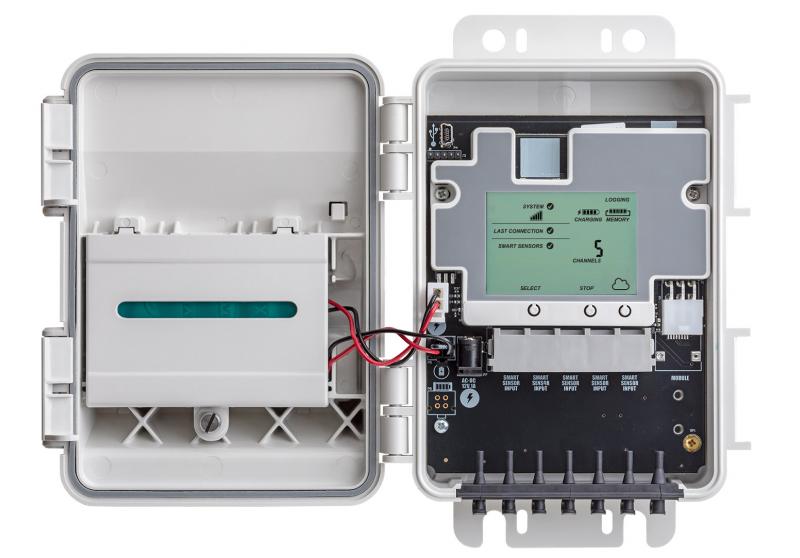

- Built-in LCD confirms proper setup and operation
- Inputs for five plug-and-play sensors
- Up to 10-minute connections rates via 4G cellular data plans
- Cloud-based monitoring and data access through HOBOlink
- Available with stainless steel or titanium sensor ends
- 3-point NIST-traceable calibration certificate included for the water pressure sensor
The MX2001-S Water Level Sensor is used with the HOBO Bluetooth Low Energy Water Level Data Logger (MX2001), the HOBO MicroRX Water Level Stations (RX2103 and RX2104), and the HOBO RX3000 Remote Monitoring Station for accurate water pressure, temperature, and water level measurements. These sensors are available in four depth ranges, as well as in stainless steel or titanium (recommended for use in saltwater).
- Non-vented design reduces maintenance
- Durable, ceramic sensor can withstand freezing
- 3-point NIST-traceable calibration certificate
Â
The water level sensor cable provides the connection between the HOBO MicroRX Water Level Station (RX2100-WL) and the water level sensor. Cables can be ordered in lengths from 1 meter to 400 meters for deployment in a wide range of applications. The 1, 2, 5, 10, 15, 30, and 60-meter cable lengths are standard and typically in stock.
Â
- Interchangeable Kevlar-reinforced cable can be used to suspend sensor
- Provides sensor communication and power
- Integrated strain relief provides support for long cables
- Two O-rings in the water level sensor connector ensure a long-term waterproof seal
- Cables are easy to attach or change
This Rain Gauge Smart Sensor measures rainfall with intensity up to five inches per hour with a resolution of 0.01 inch, and 1% accuracy for rainfall rates up to 1″/hour. The tipping bucket mechanism is mounted on a stainless steel shaft with brass bearings. This model includes a 2m cable.
Â
- Measures rainfall rates up to five inches per hour
- Resolution of 0.01 inch
- maximum of 4000 tips per interval
- 2m cable
2-meter tripod with mast used for mounting loggers and other sensors in a weather station application. This tripod is not adjustable for sloping surfaces. (Cross arms, data logger, sensors, and radiation shield sold separately.)
Â
Cross arm height range:Â 1.72 to 2.13 m (5.6 to 7 ft.)
Leg height (to top of legs):Â 0.81 m (2.7 ft.)
Mast diameter:Â 4.1 cm (1.63 in.)
Tripod footprint:Â 51 cm (20 in.)
Weight:Â 12.8 lbs.
Maxium slope:Â not adjustable for sloping surfaces
